Lithium battery products for heavy-duty low-speed three- and four-wheeled vehicles
-
Product Advantages
-
Main Specifications
-
Application
-
Related Products
Product Advantages
-
Brand new A-grade battery cell
-
Continuous 2C discharge
-
Long cycle
-
30-year renewal
-
2-year warranty
-
IP67
Main Product Parameters
-

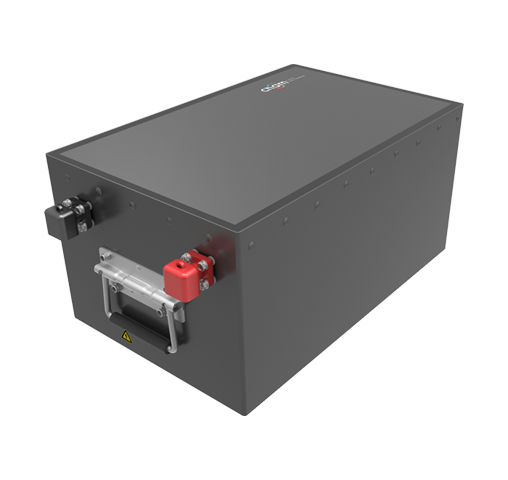

76100
-

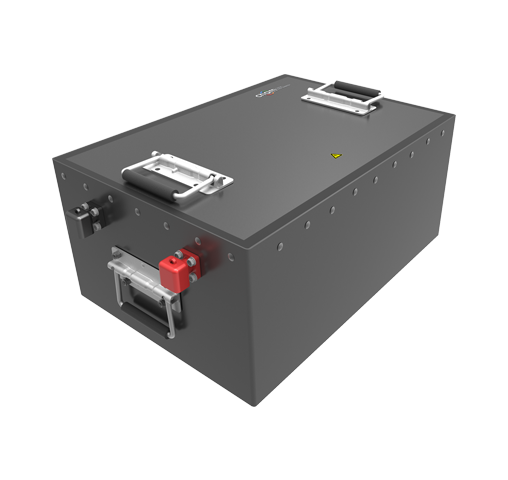

76150
-
-
Cell Specification
LFP
-
Dimensions
470*350*235mm
-
Weight
60kg
-
Rated Voltage
76.8V
-
Rated Capacity
105Ah
-
Charging Limit Voltage
87.6V
-
Discharging Cut-off Voltage
60V
-
Max Charging Current
100A
-
Max Discharging Current
200A
-
Charging Operating Temperature
0℃~55℃
-
Discharging Operating Temperature
-20℃~60℃
-
Protection Class
IP 67
-
-
-
Cell Specification
LFP
-
Dimensions
550*320*320mm
-
Weight
84kg
-
Rated Voltage
76.8V
-
Rated Capacity
150Ah
-
Charging Limit Voltage
87.6V
-
Discharging Cut-off Voltage
60V
-
Max Charging Current
150A
-
Max Discharging Current
300A
-
Charging Operating Temperature
0℃~55℃
-
Discharging Operating Temperature
-20℃~60℃
-
Protection Class
IP 67
-
Application Scenarios
Service Support
Rapid Response After-sales Service
With a dedicated after-sales service team providing 7X24 technical support, users can receive a rapid response in a short period of time, effectively shortening the maintenance cycle.
Professional Team Support
CHAM has been focus on new energy core technology for 20 years, providing customized products and services to customers with its professional pre-sales and R&D teams.
Convenient Service Channel
Extensive sales networks, factories, and after-sales service centers have been strategically deployed in various locations such as Shenzhen, Dongguan, Sichuan, Jiangsu, Indonesia, and Germany.
Customized Design Services
Our professional R&D team focuses on meeting the individual needs of our clients, tailored to create efficient and stable battery solutions that facilitate the successful implementation of projects.
